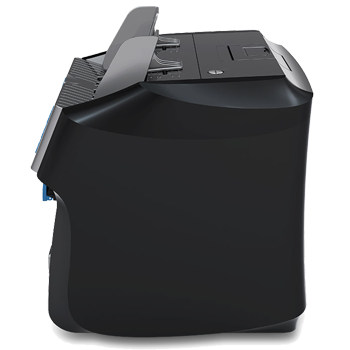

CountLab NCS4000

NCS4000 premium heavy duty mixed value bank note counter. Capable of counting multiple currencies, with operator overides allowing for superior counterfeit identification

Premium heavy duty model

Mixed Value Sorter

Internal thermal printer

Large hopper & stacker

CIS Sensor Technology

Multiple note detection systems including - CIS image note detection UV note identification MG note identification DD note identification Multiple counting modes including- Mixed Value Count Single Piece Count GBP, USD & Euro modes Fully adjustable counterfeit sensitivity 3 speed settings (up to 1200 notes per minute) Auto or manual start Customer set batch count facility Add feature allowing for consecutive cumulative counts Note detection - spots a rogue smaller note in a batch of larger notes Customer adjustable sensitivity & parameters Counts all Polymer bank notes Large hopper & stacker for volume counting Ergonomic display panel with numeric keyboard & function keys Large LCD display

Main display: 3.5inch TFT display

Hopper capacity: 500pcs

Stacker capacity: 200pcs

Rated Voltage/Frequencey: AC100-240V, 50/60Hz

Power consumption: 80W (MAX)

Rejection capacity: 50-100pcs

Counting speed: 800/1000/12000pcs/min

Interface: RS232, USB, SD card slot

N.W.: 10KG

G.W.: 11KG

Dimensions: 280mmx280mmx296mm

MODEL	Super Lite	BNC100+	NC20iX	BNC300	NCS3600	NCS4000
Portable	✓	✗	✗	✗	✗	✗
Single Value Counter	✗	✓	✓	✗	✓	✓
4 Fold Detection	✗	✗	✓	✓	✓	✓
Heavy Duty	✗	✗	✗	✓	✓	✓
Mixed Value Counter	✗	✗	✗	✗	✓	✓
Note Sorter	✗	✗	✗	✗	✗	✓
